Triplex Filter

Home » Industrial Filters » Triplex Filter

We are engaged in offering reliable Triplex Filter to our esteemed clients. The Triplex Filter is manufactured using quality components and sophisticated technology. Our Triplex Filter promise excellent filtration efficiency and high durability which has led to its high demand in the market. Moreover our Triplex Filter is sturdy and durable and thus stands ahead in the market.

Features

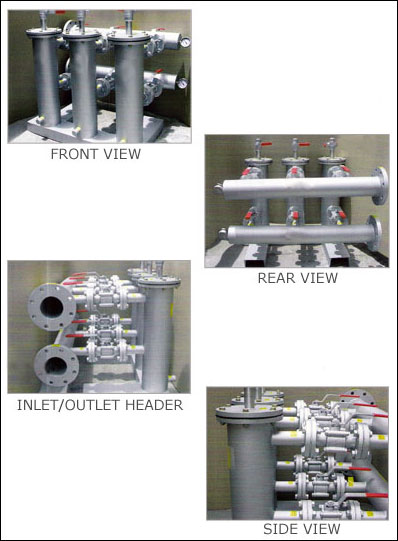

Triplex filter consists of three filter units valved in parallel to common header
The special feature of these filters that they can be sequentially backwashed in place, while the other remains on stream
Filters operating at low pressures are providing with external backwash line
Filters with High pressures can be backwashed by reversing the water flow
Triplex filters up to 3000 LPM are in our standard scope of supply however we can design and supply filters for a capacity of 8000 LPM depending upon micron ratings

Specifications

Capacity:-Low Pressure : 30 LPM to 3000 LPM
Capacity:-High Pressure : 30 LPM to 2000 LPM
Range : 25 Microns to 1000 microns
Standard Inlet Connection : 2 to 2.5â�� BSP
All capacities offered with Headers
MOC : - Body SS 304 / 316 / Carbon Steel Epoxy coated
MOC : Element- SS 304 / 316 / 316 L
