Nozzle Discs For Self Cleaning Brush

We are actively engaged in providing Nozzle Discs For Self Cleaning Brush. The Nozzle Discs For Self Cleaning Brush is used in self cleaning showers with internal brush arrangement. Our Nozzle Discs For Self Cleaning Brush is highly durable and promise reliable performance. We provide the Nozzle Discs For Self Cleaning Brush in diverse sizes to meet the requirements of the clients.

Features

• Needle and fishtail jet nozzles are available in a wide range of sizes for Various applications
• Nozzles are designed to operate on contaminated water / white water used in various treatments. Nozzles are available in standard shapes, to accommodate all popular types and models available indigenous and imported
• Material of construction SS 304,316, Hardened SS

Applications

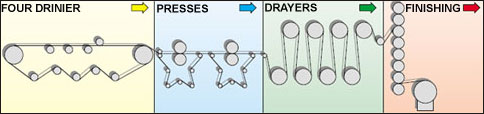

• Paper Mills – Wire Lubricating Showers
• High Pressure Cleaning
• Thickeners in Pulp Mill
• Asbestos Wire / conveyor cleaning

Specifications (Dome Type - Needle Jet Nozzle)

Nozzle Orifice Dia	Water Discharge Lpm/min—Pressure kg/cm2
	6	10	15	20	25	30	35
0.7	0.800	1.037	1.270	1.467	1.641	1.790	1.890
0.8	1.046	1.355	1.679	1.916	2.140	2.343	2.480
0.9	1.324	1.714	2.105	2.425	2.710	2.960	3.194
1.0	1.634	2.110	2.590	2.998	3.353	3.665	3.960
1.2	2.350	3.048	3.730	4.310	4.820	5.277	5.670

Specifications (Dome Type - Fishtail Jet Nozzle)

Nozzle Orifice Dia	Water Discharge Lpm/min—Pressure kg/cm2
	2	4	5	6	7
1.2	0.7	1.2	1.3	1.4	1.5
1.5	1.6	2.3	2.6	2.8	3.1
2	2.5	3.5	3.9	4.2	4.6
2.5	4.1	5	5.8	6.5	7.1
3	5.7	8.1	9	9.9	10.7
